自读海尔l32f6版号0091802239v1.4 mst6m181vs 屏LC30WXEMST_EXT_SPI #ISP_20170411...

程帅

rt809f刚刚入手请各位老师指点。
打印信息
2017-4-11, 11:13:39
COM4, BaudRate:115200 bps, RXD: VGA->12,TXD: VGA->15, Printed by RT809F:


  SPI BOOT
Console Initial OK
Maria10: BD_MST004B_20AVS_10306
MIU: DDR_400Mhz_2x
BIST_0 PASS.
07 07
[ 05 06 07 08 10 11 ]
[ 05 06 07 08 10 11 ]
07 07


MIU Initial OK

sar input test...
MDrv_PNL_Init u32PnlRiuBaseAddr = A0200000
MDrv_PNL_Init u32PMRiuBaseAddr = A0000000
GE_SetOnePixelMode


====================
First GOP driver instance, flush GWIN HW
====================



s8SN0(2) s8SN1(1)
g_u8DCOnOff = OFF

POWERON_MODE_OFF >>
should go to standby!!!!!
Power down



=> DeepSleep (0xD5) ?
  SPI BOOT
Console Initial OK
Maria10: BD_MST004B_20AVS_10306
MIU: DDR_400Mhz_2x
BIST_0 PASS.
07 07
[ 05 06 07 08 10 11 ]
[ 05 06 07 08 10 11 ]
07 07


MIU Initial OK

sar input test...
MDrv_PNL_Init u32PnlRiuBaseAddr = A0200000
MDrv_PNL_Init u32PMRiuBaseAddr = A0000000
GE_SetOnePixelMode


====================
First GOP driver instance, flush GWIN HW
====================



s8SN0(2) s8SN1(1)
=============== eWin = 0 ==============

Enter enUiInputSourceType = 7




Set black TRUEenUiInputSourceType  = 7
__DMP__
Result enInputSourceType = 36
[Set] _enSysInputSource = 0x100
MApp_DMP_InitDMPStat



Set black TRUE

Set black FALSE
---MApi_PNL_SetInverter true----
Disable Aeon

Disable Aeon Done

DSP code loaded successfully


Logo Delay 2 seconds

Set black TRUE
--logo def---
=============== eWin = 0 ==============

Enter enUiInputSourceType = 6




Set black TRUE[Clear] _enSysInputSource = 0x0
enUiInputSourceType  = 6
__HDMI__

Result enInputSourceType = 23
[Set] _enSysInputSource = 0x20

====================================
========= CUS04_ATV_MM_M10 =========


DVB-T Software Version: 0.305665



[Board]: BD_MST004B_20AVS_10306

[Panel]: WXGA_LC320WXE_SCB1_1366X768

[Tuner]: HTF2_8C_116CW

[MEMORY_MAP]: MMAP_32MB

[DRAM SIZE]: 32 MB

[FLASH SIZE]: 4 MB

[ATV]: PAL

[Mirror]: 0

[ENABLE_PWS]: 0

[ENABLE_POWER_SAVING_DPMS]: 0

[DEMO_FINE_TUNE]: DFT_STD_FULLHD_CMO216

[ENABLE_DLC]

[MWE]

[DISPLAY_LOGO]
====================================



##########go to main loop#########



Set blue TRUE

苹果红了

谢谢你的分享

程帅

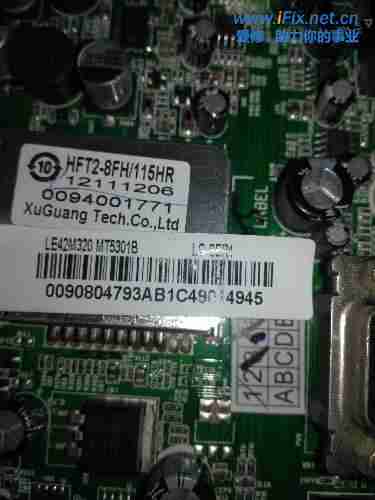

但是mt5301b总是无法联机！

hak

谢谢  分享

羊庄修理

谢谢你的分享

名品电器维修

谢谢楼主的数据分享！
