sir i under stand that ,,mainboard give supply 3.3v for ec with adaptor,and i can short the fly lines,,but my red wire who comes from programer ,,where i solder that wire for 3.3v,my ec is kb9022,,

admin

mbm 发表于 2016-4-13 15:53
sir i under stand that ,,mainboard give supply 3.3v for ec with adaptor,and i can short the fly line ...

The programmer does not need to take the red line for 3.3V.
It is  using USB power supply.

mbm

for  example

mbm

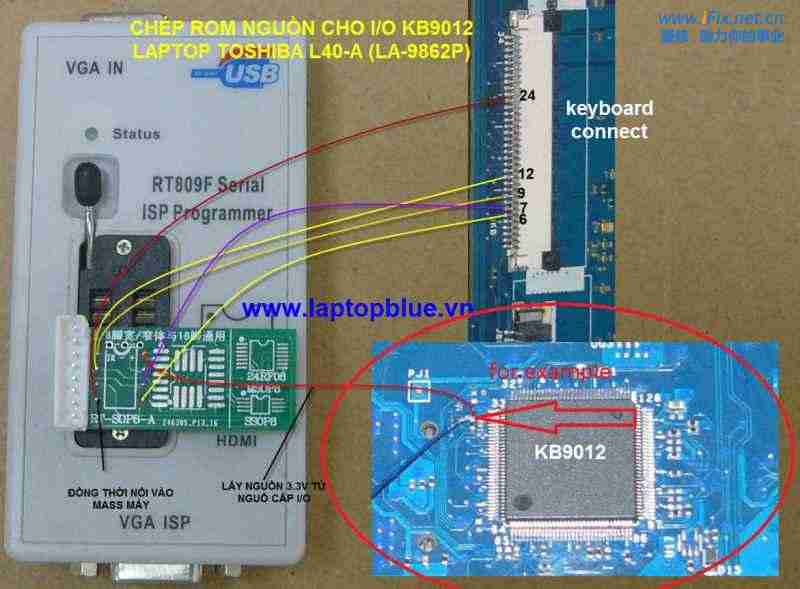

my problem in pic,,,ec 3.3volt connection ,,,in pic kb9012 but my ec kb9022,,,where i soldr my red fly line

admin

mbm 发表于 2016-4-13 16:07
my problem in pic,,,ec 3.3volt connection ,,,in pic kb9012 but my ec kb9022,,,where i soldr my red f ...

The board do not need to connect this wire for 3.3V.
EDI_CS  /KSI4    59
EDI_CLK/KSI5    60
EDI_DIN/KSI6    61
EDI_DO/KSI7     62
TP_PLL_Lock/KSO3 42 conect to GND,then to RT809F's GND.

Only 5 lines.

mbm

so thanx sir,i under stand,,soo thanx ,i learned.
